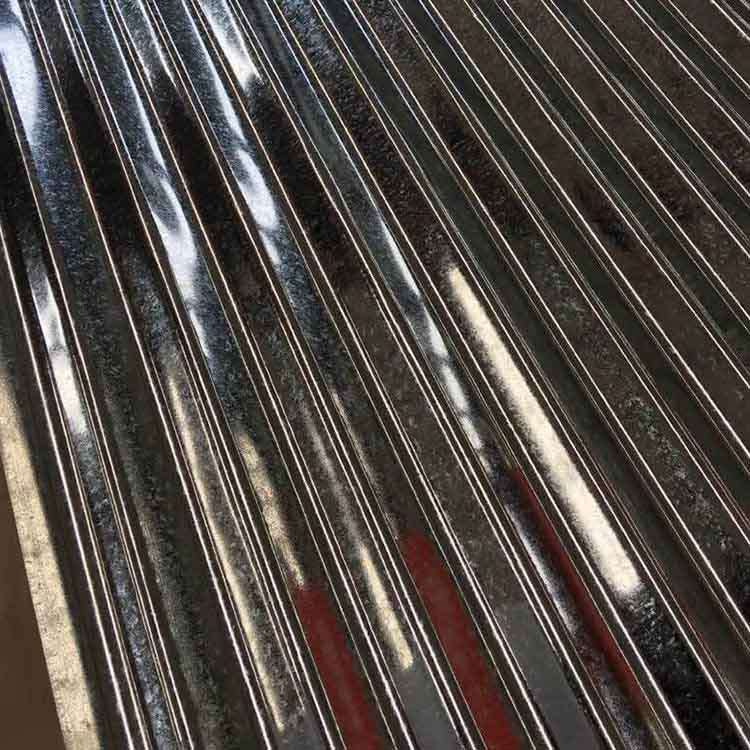

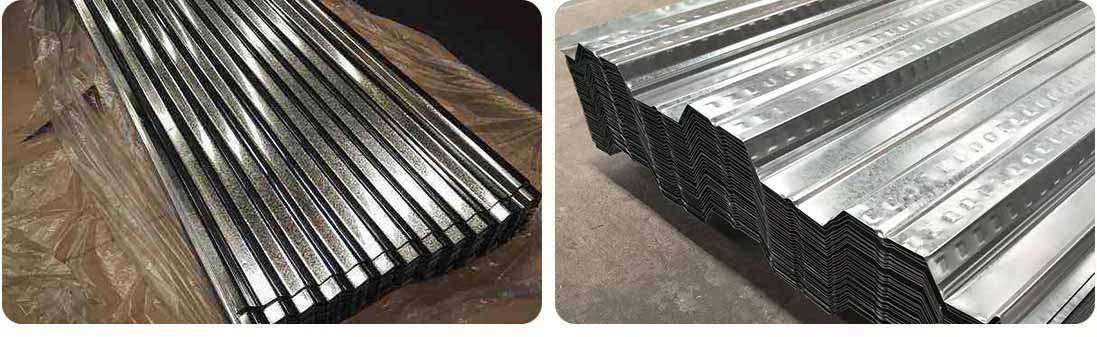

Galvalume Corrugated Plate

Galvalume corrugated boards are most commonly used for roofing and wall decoration in the construction industry. They are lightweight, corrosion-resistant, aging-resistant, and fire-proof.

Email :

WhatsApp :

Product Description

DC51D+AZ DC52D+AZ DC53D+AZ DC54D+AZ G550+AZ

Galvalume corrugated boards are most commonly used for roofing and wall decoration in the construction industry. They are lightweight, corrosion-resistant, aging-resistant, and fire-proof. In addition, it is widely used in equipment protective shells in petroleum, chemical industry, light industry, metallurgy, aviation and other fields. These industries may have different requirements for galvanized corrugated sheets, and you can choose products of different thicknesses according to your needs.

Product Name	Galvalume Corrugated Plate/Galvalume Roofing Sheet
Product Definition	Galvalume steel plate is covered with aluminum-zinc alloy on the surface of the steel plate. It is composed of 55% aluminum, 43.4% zinc and 1.6% silicon solidified at a high temperature of 600℃.Its entire structure is composed of aluminum-iron-silicon-zinc, forming a dense quaternary crystal of an alloy-coated steel plate.
Thickness	0.1mm-1.2mm
Width	600mm-1270mm
Surface Coating Thickness	10μm-30μm
Back Coating Thickness	5μm-20μm
Grams of Zinc Layer	40g/m²-275g/m²
Brand Number	DC51D+AZ DC52D+AZ DC53D+AZ DC54D+AZ G550+AZ
Zinc Layer Type	Aluminum zinc alloy coating
Zinc Layer Surface	Normal sprinkling, normal small sprinkling, smooth processing
Surface Treatment	Chromic acid passivation, chromium-free passivation, chromic acid passivation + oiling, chromium-free passivation + oiling,Oil coating, normal fingerprint resistance, chrome-free fingerprint resistance, chromium-free high weather resistance and fingerprint resistance
MOQ	25tons
MOQ	25tons

Package

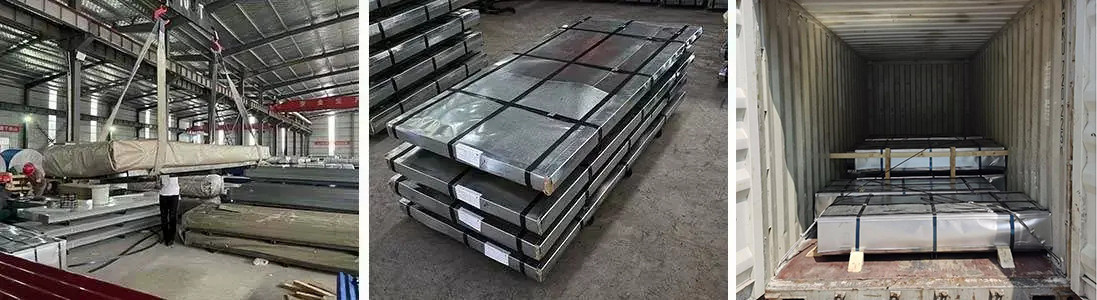

PACKAGING AND SHIPPING
Same day shipment on most Stock ltems.
We strive to ship all orders in a timely fashion.
Ask us about expediting for your urgent items. We want to exceed your expectations! MTR's are standard with all of our material.

· Marking & Stencilling
· Includes Material ldentification & QA Documentation
· Tagging
· Die Stamping
· Bar-Coding

The company has passed SGS CE ISO and other certifications, has complete testing equipment, strong technical force, and accepts factory testing.

We firmly believe that "quality is the core of an enterprise's sustainable strength."

We will establish a stable, long-term, win-win cooperative relationship with our customers and insist on it.

Taigang Metal is also the only company that promises to take back products if they do not meet the standards.
